1.Camera Module:
Image Sensor:1/2.8" Progressive Scan CMOS
Max. Resolution:2560 × 1440
Min. Illumination:Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed:1/1 s to 1/30,000 s
Day & Night:IR cut filter
Zoom:25x optical, 16x digital
Slow Shutter:Yes
2.Lens:
Focal Length:4.8 to 120 mm
FOV:Horizontal FOV 53.3° to 2.6°, vertical FOV 30.6° to 1.5°, diagonal FOV 60.5° to 3°
Focus:Auto, semi-auto, manual
Aperture:Max. F1.6
Zoom Speed:Approx. 3.4 s
3.Illuminator:
Supplement Light Type:IR
Supplement Light Range:IR Distance: up to 50m
Smart Supplement Light:Yes
IR Wavelength:850 nm
4.PTZ:
Movement Range (Pan):0° to 360°
Movement Range (Tilt):-5° to 90°
Pan Speed:Pan speed: configurable from 0.1° to 300°/s; preset speed: 350°/s
Tilt Speed:Tilt speed: configurable from 0.1° to 160°/s, preset speed 200°/s
Proportional Zoom:Yes
Presets:300
Preset Freezing:Yes
Patrol Scan:8 patrols, up to 32 presets for each patrol
Pattern Scan:4 pattern scans, record time over 10 minutes for each scan
Park Action:Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,panorama scan
3D Positioning:Yes
PTZ Status Display:Yes
Scheduled Task:Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,panorama scan, dome reboot, dome adjust:
Power-off Memory:Yes
5.Video:
Main Stream:
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream:
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression:
Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
H.264 Type:Baseline Profile/Main Profile/High Profile
H.265 Type:Main profile
Scalable Video Coding (SVC):H.264 and H.265 encoding
Region of Interest (ROI):8 fixed regions for each stream
6.Audio:
Audio Compression:G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit rate:64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/128 to 1024Kbps(PCM)/16-64Kbps(AAC-LC):
Audio Sampling Rate:AAC: 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32kHz, 64 kHz:
Environment Noise Filtering:Yes
7.Network:
Protocols:IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, Websocket, Websockets:
Simultaneous Live View:Up to 20 channels
API:Open Network Video Interface (Version 18.12), Profile S, Profile G, Profile T), ISAPI,SDK, ISUP
User/Host:Up to 32 users; 3 user levels: administrator, operator, and user
Security:Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2,host authentication (MAC address)
Network Storage:NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client:iVMS-4200, HikCentral Pro, Hik-Connect
Web Browser:IE 10-11, Chrome 57+, Firefox 52+, Safari 11+
8.Image:
Image Parameters Switch:Yes
Image Settings:Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser:
Day/Night Switch:Day, Night, Auto, Schedule
Wide Dynamic Range (WDR):120 dB
SNR:>52dB
Defog:Digital defog
Image Enhancement:BLC, HLC, 3D DNR
Privacy Mask:24 programmable polygon privacy masks, mask color or mosaic configurable
Regional Focus:Yes
Regional Exposure:Yes
9.Interface:
Ethernet Interface:1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage:Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Audio:
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%
1 output (line out), line level, output impedance: 600 Ω
Alarm:2 inputs, 2 outputs
Reset:Yes
10.Event:
Basic Event:Motion detection, video tampering alarm, exception, alarm input and output
Smart Event:Face detection, line crossing detection, intrusion detection, region entrance detection,region exiting detection, unattended baggage detection, object removal detection, audio exception detection
Alarm Linkage:Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
11.General:
Power:12 VDC, Max. 18 W; PoE (802.3at)
Dimension:Ø 169 mm × 161 mm (Ø 6.65" × 6.34")
Weight:Approx. 2.45 kg (5.40 lb.)
Operating Condition:-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
General Function:Mirror, password protection
12.Approval:
Protection:IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection

4.8 to 120 mm lens,25X Optical Zoom, allows for closer viewing of subjects in expansive areas

Excellent low-light performance via powered-by-DarkFighter technology

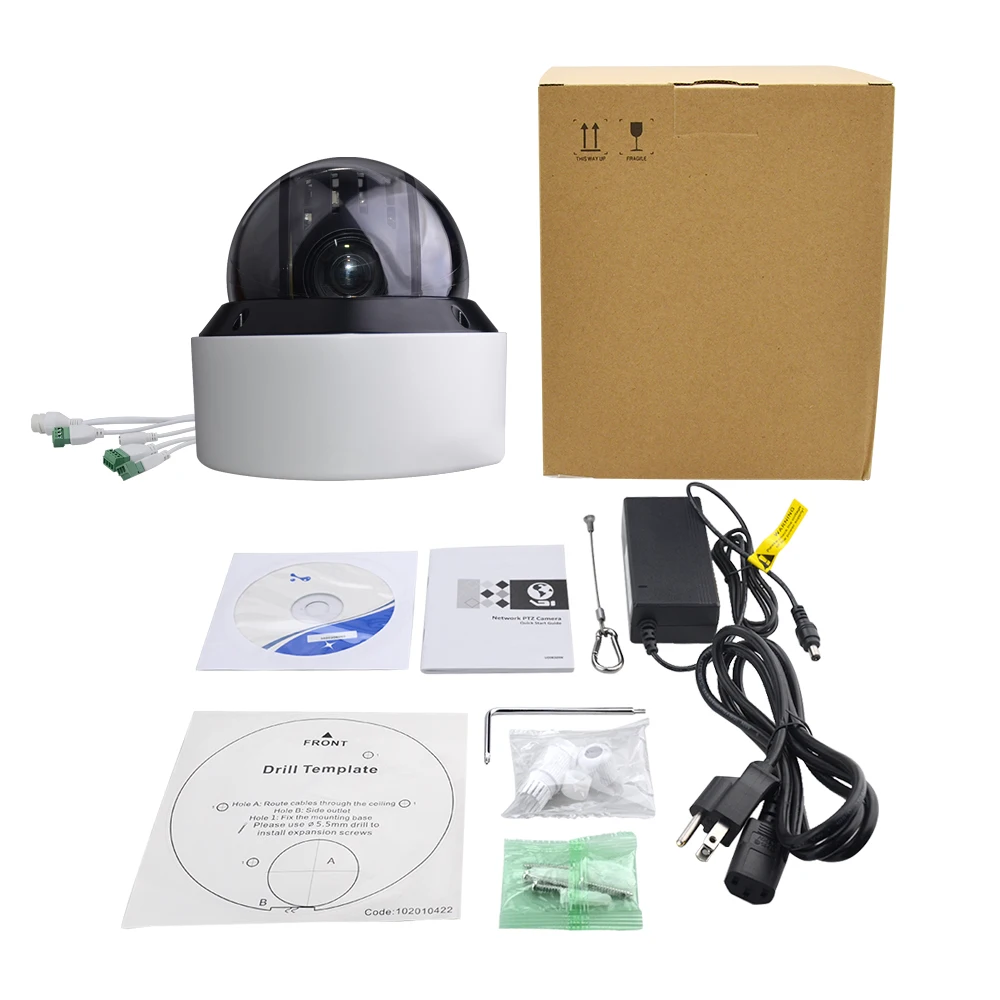

> Wiring cap * 1

> Screw driver * 1

> Screw * 1 lot
> Location hole paper * 1
